最高精度を誇るガラススケール（クローム蒸着目盛り付き） | ||||||
|

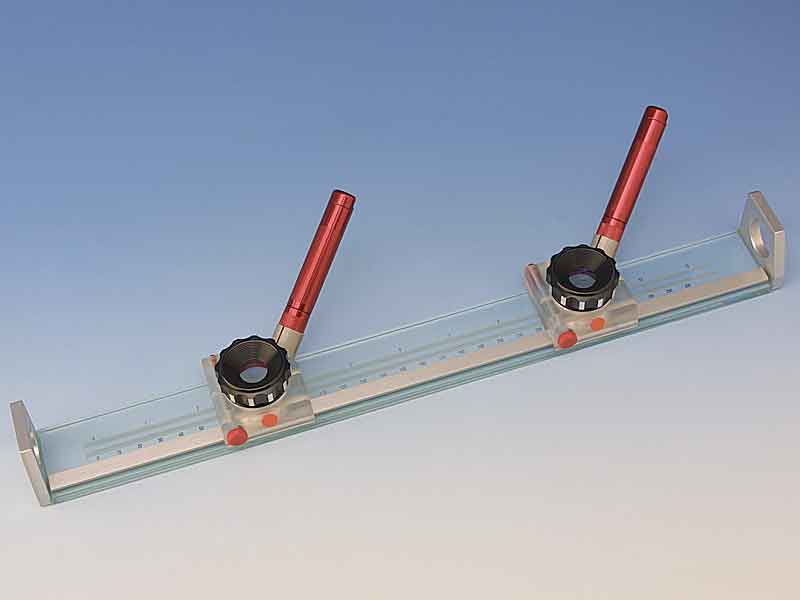

 Chrome-scales: The vapour-metallized chrome scales of the glass ruler are of the highest precision. | |||||
|
The precision
glass ruler features vapour-metallized hard chrome graduation marks and
figures. Scales are available in metric and inches. To facilitate reading,
the figures are backed by white tape. For safe handling, the chrome scale
is equipped with an anodized grip at each end. The precision magnifiers
(type 2016 with 15x magnification and 12 millimetre field of view),
combined with the two lamps facilitate easy, error-free reading. The
smallest increment on the inch scale is 0.005”, and on the metric scale
0.1 millimetre. For even more reading accuracy, we supply a chrome
Microscale. Measurement of the distance between the tenth of a millimetre
increments is carried out by an adapted analogue or digital gauge. This
permits the exact measurement of distances to a hundredth of a
millimetre. The high quality precision glass ruler is supplied in a durable wooden case to protect it against damage. The chrome-scale is available in lengths of 300, 500, 1000, 1400, 1600 and 2000 millimetres. Special lengths are available on request. An advantage of the glass ruler is that thermal expansion is very low. Temperature fluctuations therefore have little effect on the chrome scale. | |||||
|

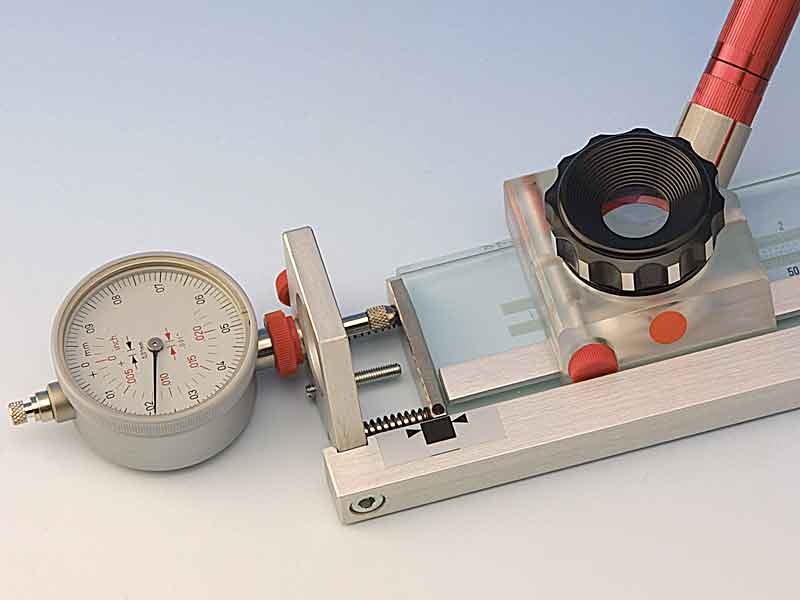

Chrome-microscale: The gauge increases reading accuracy in the
1/100 millimetre range.  |

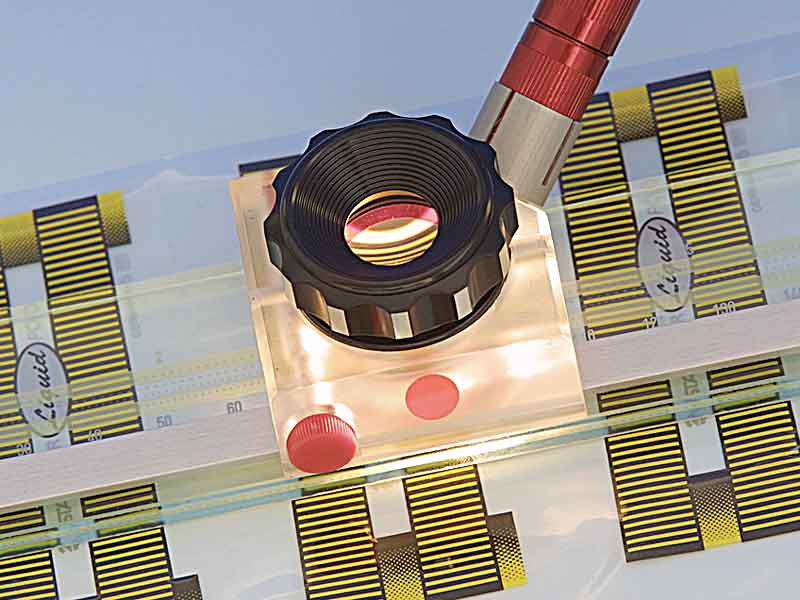

 Fully illuminated: Built-in illumination and the focusable lens of the magnifier facilitate reading. | ||||
|
|||||
|
